單人雙吹風淋室

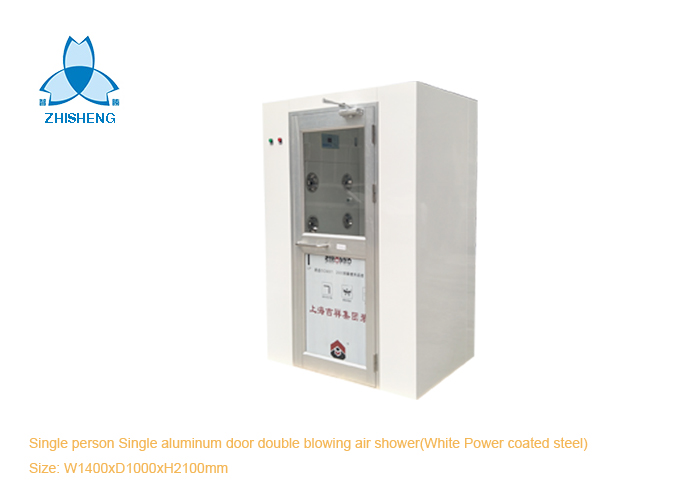

單人雙吹風淋室 AS-1400D-1

單人雙吹風淋室
產品描述: 單人雙吹風淋室 AS-1400D-1 ----材質外冷板噴涂，鋁合金單開門，單人雙吹
在線訂購

單人雙吹風淋室 AS-1400D-1

外尺寸：W1400xD1000xH2100mm

內尺寸：W800xD900xH1960mm

風淋室Air Shower

描述: 風淋室是人/貨進入潔凈室所必須的通道，保持潔凈室與外界的隔離，進入潔凈區的人和貨物經高效過濾器后的潔凈空氣吹淋后，能有效而迅速清除塵埃粒子，我們可以根據潔凈區人數多少組裝成各種長度的風淋室或者風淋通道。

Description: Air shower is a kind of partial clean equipment which is installed at the place between the clean and non-clean room. It’s used for people and goods to shower before entering the clean area. After using it, the dust could effectively be reduced to enter the clean area and maintain the normal working status.We can assembly air showers or passages in different lengths as per the number of people that may enter into the clean room.
吹淋方式：單側吹，雙側吹和三側吹

Blowing type: single-side blowing, double-side blowing, three-side blowing.

特點Features:

1. IC智能線路板控制，電子互鎖，光電感應自動吹淋。The control system by IC intelligent control panel, blowing automatically by photoelectric sensor, the two doors are electric interlocked.

2. 風淋時間0-99秒可調，出廠初始設置為15秒。Air shower time from 0 to 99 seconds which can be adjustable

3. 采用初、高效兩級過濾器系統。Adopt Primary filter and HEPA filter

4. 風速：22-25m/s Spurt speed: 22-25m/s

5. 貨淋室無底板 Cargo air shower which is without base.

Optional accessory: 可選配件

1. 自動感應平移門/快速卷簾門Automatic sliding door/high speed shutter door

2. 超高效過濾器 ULPA filter

3. 箱體材質：冷軋板噴涂/不銹鋼201/不繡鋼304

Material for cabinet: cold-rolled steel plate with powder coated / SUS#201 / SUS#304

4. 殺菌燈/急停開關UV Sterilizer lamp /E-stop switch

5. 離子噴嘴Ion Nozzle

尺寸和參數Size and specification

Model型號	Air shower 風淋室				Cargo Air shower 貨淋室
	Air shower 風淋室				Cargo Air shower 貨淋室
	AS-1200D-1	AS-1400D-1	AS-1400D-1.5	AS-1400D-2	CAS-1700T-2 (2 Modules)	CAS-1700T-4 (4 Modules)
Outer size 外尺寸WxDxH (MM)	1200x1000x 2050	1400x1000x 2050	1400x1500x 2050	1400x2000x 2050	1800x2000x2050	1800x4000x 2050
Inner size 內尺寸 WxDxH (MM)	800x900x 1920	800x900x 1920	800x1400x 1920	800x1900x 1920	1200x1900x 1920	1200x3900x 1920
Doors門	Swing door/sliding door/shutter door 手開門/自動平移門/高速卷簾門 Door frame: SS/ALU 門框材質：不銹鋼/鋁合金
Suitable person適合人數	1	1	1-2	2-3	Cart 推車
Nozzles 噴嘴	12(two side)	12(two sides)	18(two sides)	24(two sides)	32(3- side)	64(3- side)
Fan 風機	#4250x1 set	#4195 x 2 sets	#4195x2sets	#4250x2sets	#4195x4sets	#4195x8sets
power(W)功率	1000W	850W	850W	2000W	1700W	3400W
HEPA filter 高效	610x610x69 1pcs	610x610x69 2pcs	610x610x69 2pcs	915x610x69 2 pcs	610x610x69 4pcs	610x610x69 8pcs
Nozzle 噴嘴	ф 25 or 32mm
Voltage 電壓	380V/50Hz/3Ph; 220V/50Hz/1Ph
Control system 控制系統	IC intelligent control panel, blowing automatically by photoelectric sensor, the two door are electric interlocked. IC 智能線路板控制，電子互鎖，光電感應自動吹淋
